实战项目四：多代理协作工作流

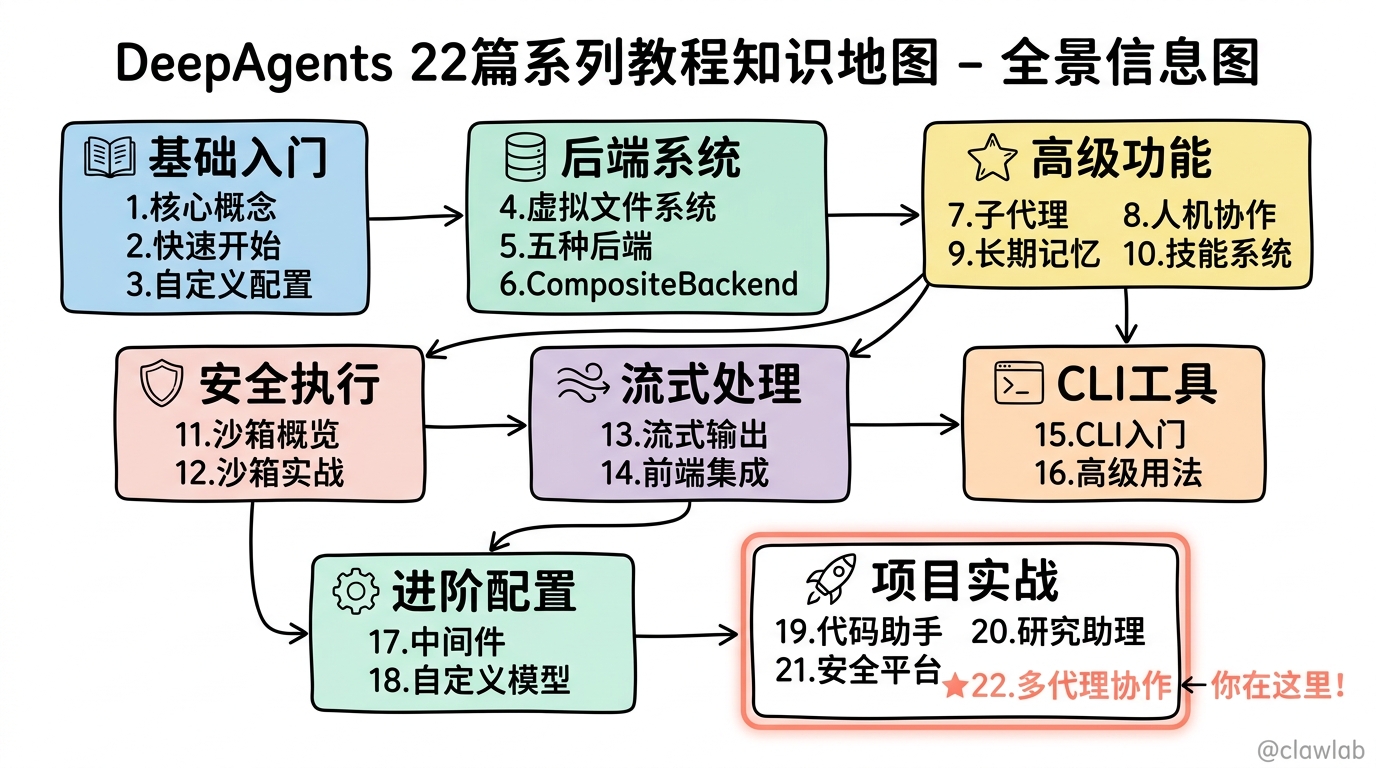

在前面三个实战项目中，我们分别探索了代码助手、研究助理和安全执行平台。现在，让我们挑战系列教程的终极项目——构建一个完整的多代理协作系统，模拟真实的软件开发团队。

项目愿景

想象一个AI驱动的软件开发团队：产品经理分析需求、架构师设计方案、开发者实现代码、审查者把关质量、测试员验证功能。每个角色各司其职，又紧密协作。这就是我们要构建的系统。

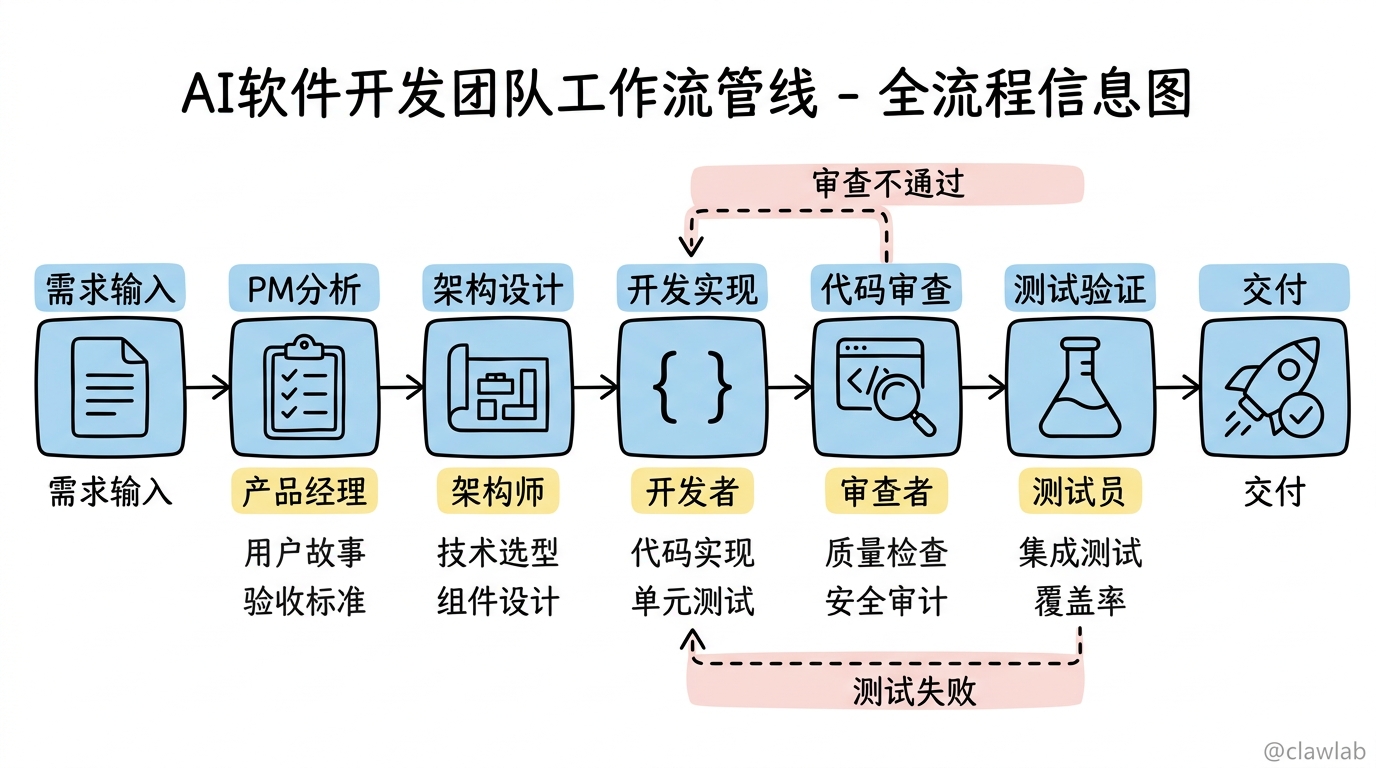

需求输入 → PM分析 → 架构设计 → 开发实现 → 代码审查 → 测试验证 → 交付

AI软件开发团队工作流管线

架构设计

团队角色定义

typescript

import {
  createDeepAgent,
  SubAgent,
  CompiledSubAgent,
  StateBackend,
  StoreBackend,
  FilesystemBackend,
  LocalShellBackend,
  CompositeBackend,
} from "@langchain/langgraph-agents";
import { ChatOpenAI } from "@langchain/openai";
import { tool } from "@langchain/core/tools";
import { z } from "zod";
import { MemorySaver } from "@langchain/langgraph";

interface TeamMember {
  name: string;
  role: string;
  responsibilities: string[];
}

const teamStructure: TeamMember[] = [
  {
    name: "product_manager",
    role: "产品经理",
    responsibilities: ["需求分析", "任务拆解", "优先级排序", "验收标准制定"],
  },
  {
    name: "architect",
    role: "架构师",
    responsibilities: ["技术选型", "系统设计", "接口定义", "风险评估"],
  },
  {
    name: "developer",
    role: "开发者",
    responsibilities: ["代码实现", "单元测试", "文档编写", "Bug修复"],
  },
  {
    name: "reviewer",
    role: "代码审查者",
    responsibilities: ["代码审查", "最佳实践检查", "安全漏洞检测", "性能分析"],
  },
  {
    name: "tester",
    role: "测试工程师",
    responsibilities: ["测试用例设计", "集成测试", "回归测试", "测试报告"],
  },
];

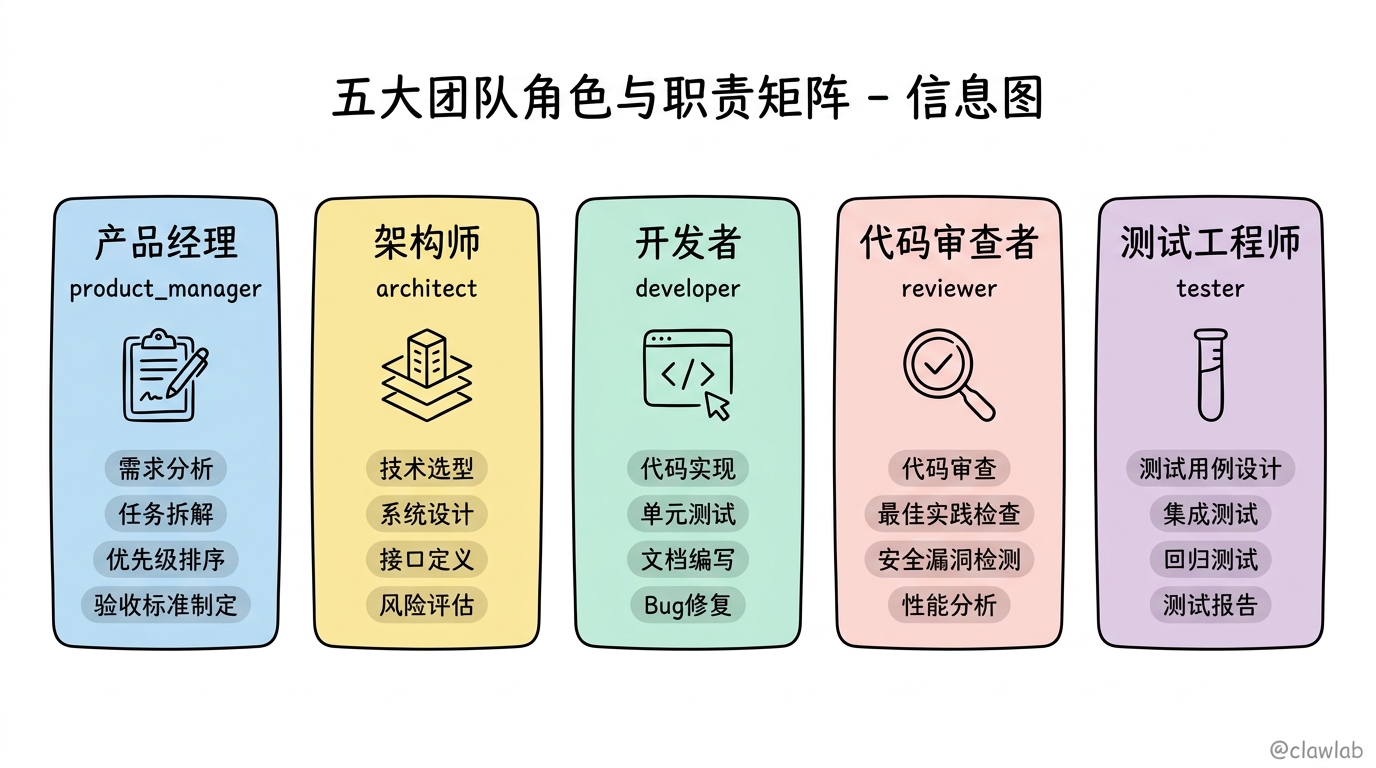

五大团队角色与职责矩阵

工作流状态定义

typescript

interface WorkflowState {
  projectName: string;
  requirement: string;
  currentPhase: WorkflowPhase;
  artifacts: WorkflowArtifacts;
  history: PhaseResult[];
  status: "in_progress" | "blocked" | "completed" | "failed";
}

type WorkflowPhase =
  | "requirement_analysis"
  | "architecture_design"
  | "development"
  | "code_review"
  | "testing"
  | "delivery";

interface WorkflowArtifacts {
  requirementDoc?: RequirementDocument;
  designDoc?: DesignDocument;
  codeFiles?: CodeFile[];
  reviewReport?: ReviewReport;
  testReport?: TestReport;
}

interface RequirementDocument {
  title: string;
  description: string;
  userStories: UserStory[];
  acceptanceCriteria: string[];
  priority: "high" | "medium" | "low";
  estimatedEffort: string;
}

interface UserStory {
  id: string;
  asA: string;
  iWant: string;
  soThat: string;
  acceptanceCriteria: string[];
}

interface DesignDocument {
  overview: string;
  techStack: string[];
  architecture: string;
  components: ComponentDesign[];
  interfaces: InterfaceDefinition[];
  dataModels: DataModel[];
  risks: Risk[];
}

interface ComponentDesign {
  name: string;
  responsibility: string;
  dependencies: string[];
  interfaces: string[];
}

interface InterfaceDefinition {
  name: string;
  method: string;
  endpoint?: string;
  parameters: ParameterDef[];
  response: string;
}

interface ParameterDef {
  name: string;
  type: string;
  required: boolean;
  description: string;
}

interface DataModel {
  name: string;
  fields: FieldDef[];
  relationships: string[];
}

interface FieldDef {
  name: string;
  type: string;
  constraints: string[];
}

interface Risk {
  description: string;
  impact: "high" | "medium" | "low";
  mitigation: string;
}

interface CodeFile {
  path: string;
  content: string;
  language: string;
  tests?: string;
}

interface ReviewReport {
  status: "approved" | "changes_requested" | "rejected";
  summary: string;
  issues: ReviewIssue[];
  suggestions: string[];
  securityConcerns: string[];
}

interface ReviewIssue {
  severity: "critical" | "major" | "minor" | "suggestion";
  file: string;
  line?: number;
  description: string;
  suggestion: string;
}

interface TestReport {
  status: "passed" | "failed" | "partial";
  summary: string;
  testCases: TestCase[];
  coverage: number;
  performanceMetrics?: PerformanceMetric[];
}

interface TestCase {
  name: string;
  status: "passed" | "failed" | "skipped";
  duration: number;
  error?: string;
}

interface PerformanceMetric {
  name: string;
  value: number;
  unit: string;
  threshold?: number;
}

interface PhaseResult {
  phase: WorkflowPhase;
  agent: string;
  startTime: Date;
  endTime: Date;
  status: "success" | "failed" | "blocked";
  output: string;
  artifacts: Partial<WorkflowArtifacts>;
}

团队成员实现

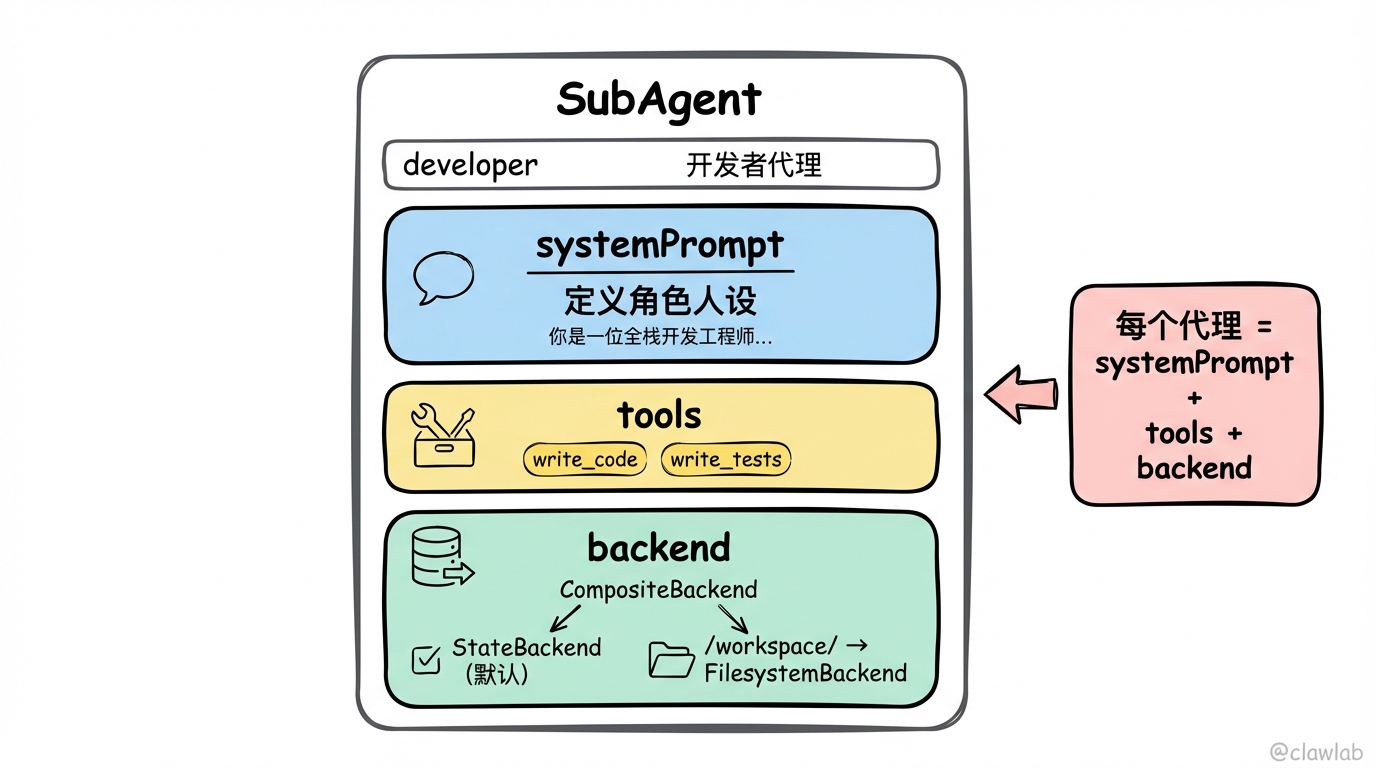

SubAgent代理解剖图

1. 产品经理代理

typescript

const requirementAnalysisTool = tool(
  async ({ requirement, context }) => {
    return JSON.stringify({
      status: "analyzed",
      message: "需求分析完成，已生成需求文档",
    });
  },
  {
    name: "analyze_requirement",
    description: "分析用户需求，生成结构化的需求文档",
    schema: z.object({
      requirement: z.string().describe("原始需求描述"),
      context: z.string().optional().describe("项目上下文信息"),
    }),
  }
);

const prioritizeTool = tool(
  async ({ items, criteria }) => {
    return JSON.stringify({
      status: "prioritized",
      order: items,
    });
  },
  {
    name: "prioritize_tasks",
    description: "根据业务价值和技术依赖对任务进行优先级排序",
    schema: z.object({
      items: z.array(z.string()).describe("待排序的任务列表"),
      criteria: z.string().describe("排序标准"),
    }),
  }
);

const productManagerAgent: SubAgent = {
  name: "product_manager",
  description: `产品经理代理，负责：
    - 分析和理解用户需求
    - 编写用户故事和验收标准
    - 任务拆解和优先级排序
    - 制定项目里程碑`,
  systemPrompt: `你是一位经验丰富的产品经理。你的职责是：

1. **需求分析**：
   - 深入理解用户需求的本质
   - 识别关键功能和非功能需求
   - 发现潜在的需求冲突或遗漏

2. **用户故事编写**：
   - 使用标准格式：作为[角色]，我想要[功能]，以便[价值]
   - 每个故事都要有明确的验收标准
   - 保持故事的独立性和可测试性

3. **任务拆解**：
   - 将大需求拆解为可执行的小任务
   - 识别任务间的依赖关系
   - 估算工作量

4. **输出格式**：
   始终以结构化的JSON格式输出需求文档，包含：
   - title: 项目标题
   - description: 项目描述
   - userStories: 用户故事数组
   - acceptanceCriteria: 整体验收标准
   - priority: 优先级
   - estimatedEffort: 预估工作量`,
  tools: [requirementAnalysisTool, prioritizeTool],
};

2. 架构师代理

typescript

const designSystemTool = tool(
  async ({ requirements, constraints }) => {
    return JSON.stringify({
      status: "designed",
      message: "系统架构设计完成",
    });
  },
  {
    name: "design_system",
    description: "根据需求设计系统架构",
    schema: z.object({
      requirements: z.string().describe("需求文档"),
      constraints: z.string().optional().describe("技术约束"),
    }),
  }
);

const defineInterfaceTool = tool(
  async ({ componentName, interfaces }) => {
    return JSON.stringify({
      status: "defined",
      interfaces: interfaces,
    });
  },
  {
    name: "define_interface",
    description: "定义组件接口",
    schema: z.object({
      componentName: z.string().describe("组件名称"),
      interfaces: z.array(z.string()).describe("接口定义"),
    }),
  }
);

const assessRiskTool = tool(
  async ({ designDoc }) => {
    return JSON.stringify({
      status: "assessed",
      risks: [],
    });
  },
  {
    name: "assess_risks",
    description: "评估设计方案的技术风险",
    schema: z.object({
      designDoc: z.string().describe("设计文档"),
    }),
  }
);

const architectAgent: SubAgent = {
  name: "architect",
  description: `架构师代理，负责：
    - 技术选型和架构设计
    - 组件划分和接口定义
    - 数据模型设计
    - 技术风险评估`,
  systemPrompt: `你是一位资深软件架构师。你的职责是：

1. **技术选型**：
   - 根据项目需求选择合适的技术栈
   - 考虑团队技术能力和学习曲线
   - 评估技术的成熟度和社区支持

2. **架构设计**：
   - 设计清晰的系统架构
   - 定义组件边界和职责
   - 确保高内聚低耦合

3. **接口定义**：
   - 定义清晰的API接口
   - 使用RESTful或GraphQL规范
   - 考虑版本控制和向后兼容

4. **数据模型**：
   - 设计合理的数据结构
   - 定义实体关系
   - 考虑数据一致性和完整性

5. **输出格式**：
   始终以结构化的JSON格式输出设计文档，包含：
   - overview: 设计概述
   - techStack: 技术栈
   - architecture: 架构描述
   - components: 组件设计
   - interfaces: 接口定义
   - dataModels: 数据模型
   - risks: 风险评估`,
  tools: [designSystemTool, defineInterfaceTool, assessRiskTool],
};

3. 开发者代理

typescript

const writeCodeTool = tool(
  async ({ specification, language }) => {
    return JSON.stringify({
      status: "written",
      message: "代码编写完成",
    });
  },
  {
    name: "write_code",
    description: "根据规范编写代码",
    schema: z.object({
      specification: z.string().describe("代码规范"),
      language: z.string().describe("编程语言"),
    }),
  }
);

const writeTestTool = tool(
  async ({ codeFile, testFramework }) => {
    return JSON.stringify({
      status: "written",
      message: "测试代码编写完成",
    });
  },
  {
    name: "write_tests",
    description: "为代码编写单元测试",
    schema: z.object({
      codeFile: z.string().describe("源代码文件"),
      testFramework: z.string().describe("测试框架"),
    }),
  }
);

const developerAgent: SubAgent = {
  name: "developer",
  description: `开发者代理，负责：
    - 根据设计文档实现代码
    - 编写单元测试
    - 处理代码审查反馈
    - 修复Bug`,
  systemPrompt: `你是一位全栈开发工程师。你的职责是：

1. **代码实现**：
   - 严格按照设计文档实现功能
   - 遵循编码规范和最佳实践
   - 编写清晰的代码注释
   - 处理边界情况和错误

2. **单元测试**：
   - 为每个功能编写单元测试
   - 覆盖正常路径和边界情况
   - 使用Mock隔离依赖

3. **代码质量**：
   - 保持代码简洁易读
   - 避免重复代码
   - 使用有意义的命名

4. **输出格式**：
   - 每个文件都要包含完整的代码
   - 使用标准的项目结构
   - 包含必要的配置文件

示例输出：
\`\`\`typescript
// src/services/user.service.ts
export class UserService {
  async createUser(data: CreateUserDto): Promise<User> {
    // 实现代码
  }
}
\`\`\``,
  tools: [writeCodeTool, writeTestTool],
  backend: (rt) =>
    new CompositeBackend(new StateBackend(rt), {
      "/workspace/": new FilesystemBackend(rt, {
        workingDirectory: "/tmp/dev-workspace",
      }),
    }),
};

4. 代码审查者代理

typescript

const reviewCodeTool = tool(
  async ({ code, standards }) => {
    return JSON.stringify({
      status: "reviewed",
      issues: [],
    });
  },
  {
    name: "review_code",
    description: "审查代码质量",
    schema: z.object({
      code: z.string().describe("待审查的代码"),
      standards: z.string().optional().describe("审查标准"),
    }),
  }
);

const checkSecurityTool = tool(
  async ({ code }) => {
    return JSON.stringify({
      status: "checked",
      vulnerabilities: [],
    });
  },
  {
    name: "check_security",
    description: "检查代码安全漏洞",
    schema: z.object({
      code: z.string().describe("待检查的代码"),
    }),
  }
);

const analyzePerformanceTool = tool(
  async ({ code }) => {
    return JSON.stringify({
      status: "analyzed",
      suggestions: [],
    });
  },
  {
    name: "analyze_performance",
    description: "分析代码性能问题",
    schema: z.object({
      code: z.string().describe("待分析的代码"),
    }),
  }
);

const reviewerAgent: SubAgent = {
  name: "reviewer",
  description: `代码审查者代理，负责：
    - 代码质量审查
    - 安全漏洞检测
    - 性能问题分析
    - 最佳实践建议`,
  systemPrompt: `你是一位严谨的代码审查专家。你的职责是：

1. **代码质量审查**：
   - 检查代码是否符合设计规范
   - 验证逻辑正确性
   - 评估代码可读性和可维护性
   - 检查错误处理是否完善

2. **安全审查**：
   - 检查常见安全漏洞（SQL注入、XSS等）
   - 验证输入验证和输出编码
   - 检查敏感数据处理
   - 评估认证和授权逻辑

3. **性能审查**：
   - 识别潜在的性能瓶颈
   - 检查N+1查询问题
   - 评估内存使用
   - 检查异步操作处理

4. **输出格式**：
   始终以结构化的JSON格式输出审查报告，包含：
   - status: "approved" | "changes_requested" | "rejected"
   - summary: 审查总结
   - issues: 问题列表（包含severity, file, line, description, suggestion）
   - suggestions: 改进建议
   - securityConcerns: 安全问题`,
  tools: [reviewCodeTool, checkSecurityTool, analyzePerformanceTool],
};

5. 测试工程师代理

typescript

const runTestsTool = tool(
  async ({ testFiles, config }) => {
    return JSON.stringify({
      status: "completed",
      results: [],
    });
  },
  {
    name: "run_tests",
    description: "执行测试用例",
    schema: z.object({
      testFiles: z.array(z.string()).describe("测试文件列表"),
      config: z.string().optional().describe("测试配置"),
    }),
  }
);

const generateTestCasesTool = tool(
  async ({ requirements, code }) => {
    return JSON.stringify({
      status: "generated",
      testCases: [],
    });
  },
  {
    name: "generate_test_cases",
    description: "根据需求生成测试用例",
    schema: z.object({
      requirements: z.string().describe("需求文档"),
      code: z.string().describe("实现代码"),
    }),
  }
);

const measureCoverageTool = tool(
  async ({ testResults }) => {
    return JSON.stringify({
      coverage: 0,
      uncoveredLines: [],
    });
  },
  {
    name: "measure_coverage",
    description: "测量测试覆盖率",
    schema: z.object({
      testResults: z.string().describe("测试结果"),
    }),
  }
);

const testerAgent: SubAgent = {
  name: "tester",
  description: `测试工程师代理，负责：
    - 设计测试用例
    - 执行集成测试
    - 回归测试
    - 生成测试报告`,
  systemPrompt: `你是一位专业的测试工程师。你的职责是：

1. **测试用例设计**：
   - 根据需求设计测试用例
   - 覆盖正常流程和异常流程
   - 设计边界条件测试
   - 包含性能测试场景

2. **测试执行**：
   - 执行单元测试和集成测试
   - 验证功能是否符合需求
   - 检查回归问题
   - 进行探索性测试

3. **测试报告**：
   - 记录测试结果
   - 分析失败原因
   - 计算测试覆盖率
   - 提供质量评估

4. **输出格式**：
   始终以结构化的JSON格式输出测试报告，包含：
   - status: "passed" | "failed" | "partial"
   - summary: 测试总结
   - testCases: 测试用例结果
   - coverage: 覆盖率
   - performanceMetrics: 性能指标`,
  tools: [runTestsTool, generateTestCasesTool, measureCoverageTool],
  backend: (rt) =>
    new CompositeBackend(new StateBackend(rt), {
      "/test-results/": new StoreBackend(rt, {
        namespace: ["test", "results"],
      }),
    }),
};

工作流协调器

主代理定义

typescript

const workflowCoordinatorTool = tool(
  async ({ phase, input }) => {
    return JSON.stringify({
      status: "coordinated",
      nextPhase: phase,
    });
  },
  {
    name: "coordinate_workflow",
    description: "协调工作流阶段转换",
    schema: z.object({
      phase: z.enum([
        "requirement_analysis",
        "architecture_design",
        "development",
        "code_review",
        "testing",
        "delivery",
      ]),
      input: z.string().describe("阶段输入"),
    }),
  }
);

const escalateIssueTool = tool(
  async ({ issue, severity }) => {
    return JSON.stringify({
      status: "escalated",
      action: "human_review",
    });
  },
  {
    name: "escalate_issue",
    description: "升级问题到人工处理",
    schema: z.object({
      issue: z.string().describe("问题描述"),
      severity: z.enum(["critical", "high", "medium", "low"]),
    }),
  }
);

const generateReportTool = tool(
  async ({ workflowState }) => {
    return JSON.stringify({
      status: "generated",
      report: {},
    });
  },
  {
    name: "generate_report",
    description: "生成工作流报告",
    schema: z.object({
      workflowState: z.string().describe("工作流状态"),
    }),
  }
);

const createTeamCoordinator = () => {
  const checkpointer = new MemorySaver();

  return createDeepAgent({
    model: new ChatOpenAI({
      modelName: "gpt-4",
      temperature: 0,
    }),
    systemPrompt: `你是软件开发团队的项目协调员。你负责：

1. **工作流管理**：
   - 协调各个开发阶段的执行顺序
   - 确保每个阶段的输出满足下一阶段的输入要求
   - 处理阶段间的依赖关系

2. **团队协调**：
   - 将任务分配给合适的团队成员
   - 收集和整合各成员的输出
   - 解决团队间的冲突

3. **质量把控**：
   - 确保每个阶段的交付物符合标准
   - 在关键节点进行审批
   - 处理异常情况

4. **工作流程**：
   需求输入 → 产品经理分析 → 架构师设计 → 开发者实现 → 审查者审查 → 测试员测试 → 交付

5. **决策规则**：
   - 如果代码审查不通过，返回开发阶段
   - 如果测试不通过，根据问题性质决定返回开发或审查阶段
   - 关键决策需要人工确认

始终输出清晰的状态更新和下一步行动计划。`,

    tools: [workflowCoordinatorTool, escalateIssueTool, generateReportTool],

    subagents: [
      productManagerAgent,
      architectAgent,
      developerAgent,
      reviewerAgent,
      testerAgent,
    ],

    backend: (rt) =>
      new CompositeBackend(new StateBackend(rt), {
        "/project/": new FilesystemBackend(rt, {
          workingDirectory: "/tmp/project-workspace",
        }),
        "/memories/": new StoreBackend(rt, {
          namespace: ["workflow", "history"],
        }),
      }),

    interruptOn: [
      {
        toolName: "task",
        condition: (toolCall) => {
          const args = toolCall.args as { name: string };
          return args.name === "developer";
        },
      },
      {
        toolName: "escalate_issue",
      },
    ],

    checkpointer,
  });
};

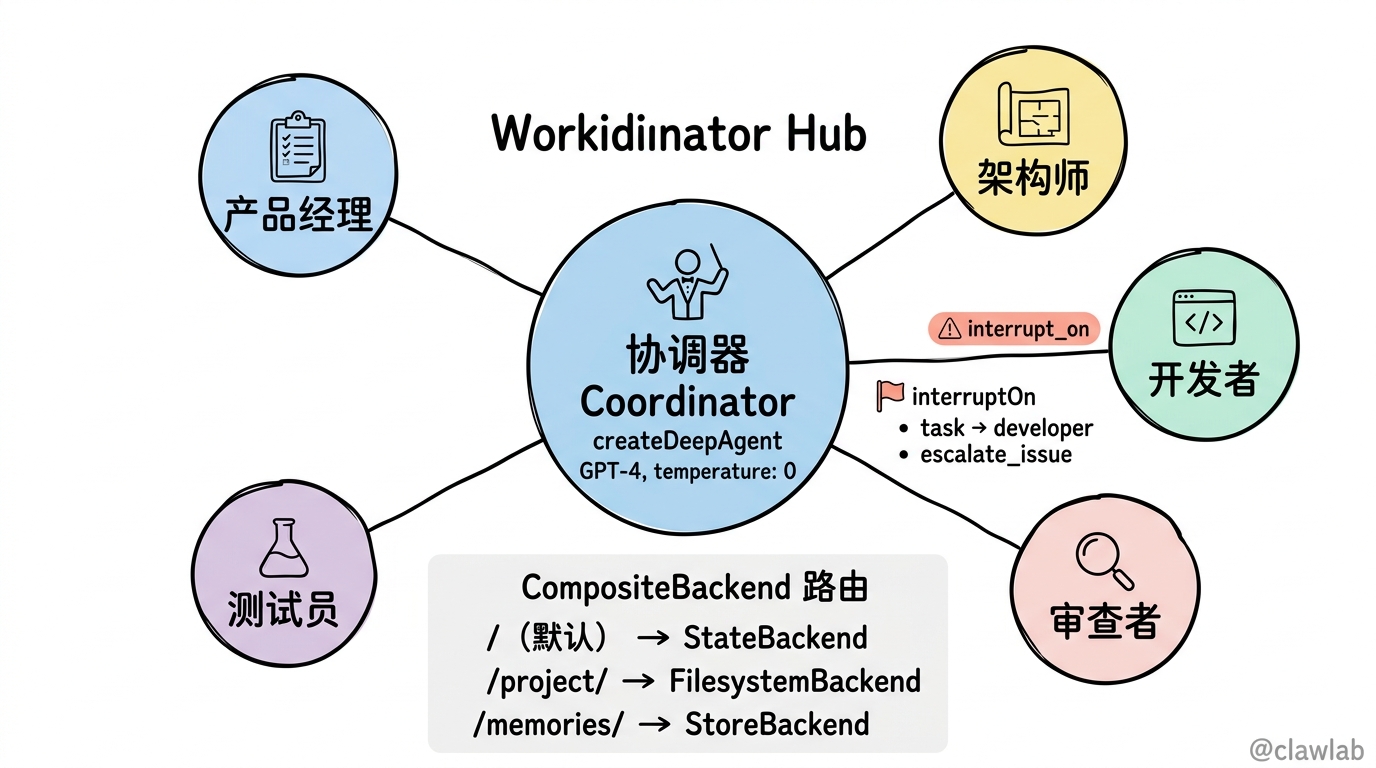

工作流协调器中枢架构

工作流执行引擎

阶段执行器

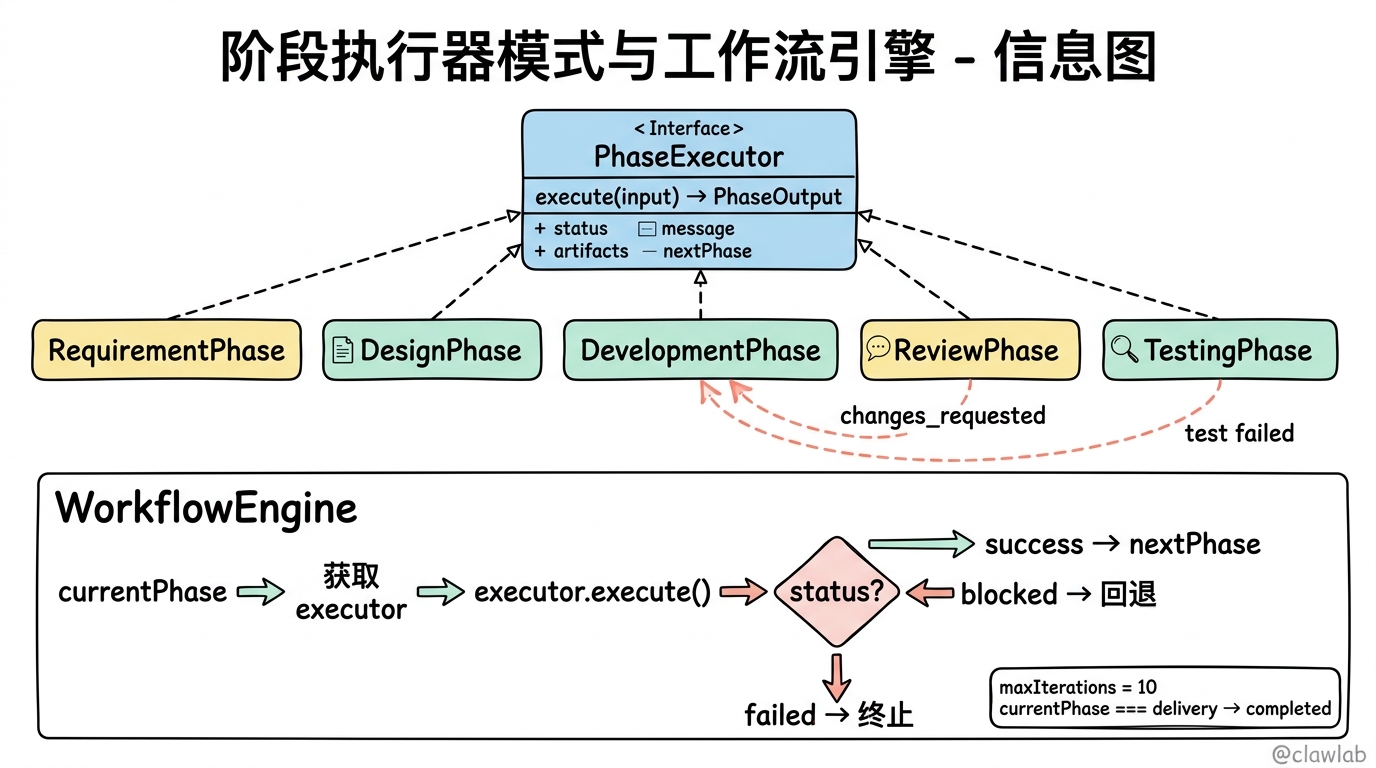

阶段执行器模式与工作流引擎

typescript

interface PhaseExecutor {
  execute(input: PhaseInput): Promise<PhaseOutput>;
}

interface PhaseInput {
  workflowState: WorkflowState;
  previousOutput?: PhaseResult;
}

interface PhaseOutput {
  status: "success" | "failed" | "blocked";
  artifacts: Partial<WorkflowArtifacts>;
  message: string;
  nextPhase?: WorkflowPhase;
}

class RequirementPhaseExecutor implements PhaseExecutor {
  constructor(private coordinator: ReturnType<typeof createTeamCoordinator>) {}

  async execute(input: PhaseInput): Promise<PhaseOutput> {
    const result = await this.coordinator.invoke({
      messages: [
        {
          role: "user",
          content: `请让产品经理分析以下需求，并生成需求文档：

项目名称：${input.workflowState.projectName}
原始需求：${input.workflowState.requirement}

要求：
1. 生成结构化的需求文档
2. 包含用户故事和验收标准
3. 进行任务拆解和优先级排序`,
        },
      ],
    });

    const requirementDoc = this.parseRequirementDoc(result);

    return {
      status: "success",
      artifacts: { requirementDoc },
      message: "需求分析完成",
      nextPhase: "architecture_design",
    };
  }

  private parseRequirementDoc(result: any): RequirementDocument {
    return {
      title: "",
      description: "",
      userStories: [],
      acceptanceCriteria: [],
      priority: "medium",
      estimatedEffort: "",
    };
  }
}

class DesignPhaseExecutor implements PhaseExecutor {
  constructor(private coordinator: ReturnType<typeof createTeamCoordinator>) {}

  async execute(input: PhaseInput): Promise<PhaseOutput> {
    const requirementDoc = input.workflowState.artifacts.requirementDoc;

    const result = await this.coordinator.invoke({
      messages: [
        {
          role: "user",
          content: `请让架构师根据以下需求设计系统架构：

需求文档：
${JSON.stringify(requirementDoc, null, 2)}

要求：
1. 选择合适的技术栈
2. 设计系统架构和组件
3. 定义接口和数据模型
4. 评估技术风险`,
        },
      ],
    });

    const designDoc = this.parseDesignDoc(result);

    return {
      status: "success",
      artifacts: { designDoc },
      message: "架构设计完成",
      nextPhase: "development",
    };
  }

  private parseDesignDoc(result: any): DesignDocument {
    return {
      overview: "",
      techStack: [],
      architecture: "",
      components: [],
      interfaces: [],
      dataModels: [],
      risks: [],
    };
  }
}

class DevelopmentPhaseExecutor implements PhaseExecutor {
  constructor(private coordinator: ReturnType<typeof createTeamCoordinator>) {}

  async execute(input: PhaseInput): Promise<PhaseOutput> {
    const { requirementDoc, designDoc } = input.workflowState.artifacts;

    const result = await this.coordinator.invoke({
      messages: [
        {
          role: "user",
          content: `请让开发者根据设计文档实现代码：

需求文档：
${JSON.stringify(requirementDoc, null, 2)}

设计文档：
${JSON.stringify(designDoc, null, 2)}

要求：
1. 严格按照设计文档实现
2. 编写单元测试
3. 遵循编码规范`,
        },
      ],
    });

    const codeFiles = this.parseCodeFiles(result);

    return {
      status: "success",
      artifacts: { codeFiles },
      message: "代码开发完成",
      nextPhase: "code_review",
    };
  }

  private parseCodeFiles(result: any): CodeFile[] {
    return [];
  }
}

class ReviewPhaseExecutor implements PhaseExecutor {
  constructor(private coordinator: ReturnType<typeof createTeamCoordinator>) {}

  async execute(input: PhaseInput): Promise<PhaseOutput> {
    const { codeFiles, designDoc } = input.workflowState.artifacts;

    const result = await this.coordinator.invoke({
      messages: [
        {
          role: "user",
          content: `请让代码审查者审查以下代码：

代码文件：
${JSON.stringify(codeFiles, null, 2)}

设计文档：
${JSON.stringify(designDoc, null, 2)}

审查要点：
1. 代码质量和规范
2. 安全漏洞检测
3. 性能问题分析
4. 是否符合设计规范`,
        },
      ],
    });

    const reviewReport = this.parseReviewReport(result);

    if (reviewReport.status === "rejected") {
      return {
        status: "blocked",
        artifacts: { reviewReport },
        message: "代码审查未通过，需要修改",
        nextPhase: "development",
      };
    }

    return {
      status: "success",
      artifacts: { reviewReport },
      message:
        reviewReport.status === "approved" ? "代码审查通过" : "代码需要修改",
      nextPhase:
        reviewReport.status === "approved" ? "testing" : "development",
    };
  }

  private parseReviewReport(result: any): ReviewReport {
    return {
      status: "approved",
      summary: "",
      issues: [],
      suggestions: [],
      securityConcerns: [],
    };
  }
}

class TestingPhaseExecutor implements PhaseExecutor {
  constructor(private coordinator: ReturnType<typeof createTeamCoordinator>) {}

  async execute(input: PhaseInput): Promise<PhaseOutput> {
    const { codeFiles, requirementDoc } = input.workflowState.artifacts;

    const result = await this.coordinator.invoke({
      messages: [
        {
          role: "user",
          content: `请让测试工程师执行测试：

代码文件：
${JSON.stringify(codeFiles, null, 2)}

需求文档：
${JSON.stringify(requirementDoc, null, 2)}

测试要求：
1. 设计测试用例
2. 执行功能测试
3. 测量代码覆盖率
4. 生成测试报告`,
        },
      ],
    });

    const testReport = this.parseTestReport(result);

    if (testReport.status === "failed") {
      return {
        status: "blocked",
        artifacts: { testReport },
        message: "测试未通过",
        nextPhase: "development",
      };
    }

    return {
      status: "success",
      artifacts: { testReport },
      message: "测试通过",
      nextPhase: "delivery",
    };
  }

  private parseTestReport(result: any): TestReport {
    return {
      status: "passed",
      summary: "",
      testCases: [],
      coverage: 0,
    };
  }
}

工作流引擎

typescript

class WorkflowEngine {
  private executors: Map<WorkflowPhase, PhaseExecutor>;
  private coordinator: ReturnType<typeof createTeamCoordinator>;

  constructor() {
    this.coordinator = createTeamCoordinator();
    this.executors = new Map([
      ["requirement_analysis", new RequirementPhaseExecutor(this.coordinator)],
      ["architecture_design", new DesignPhaseExecutor(this.coordinator)],
      ["development", new DevelopmentPhaseExecutor(this.coordinator)],
      ["code_review", new ReviewPhaseExecutor(this.coordinator)],
      ["testing", new TestingPhaseExecutor(this.coordinator)],
    ]);
  }

  async run(
    projectName: string,
    requirement: string
  ): Promise<WorkflowState> {
    const state: WorkflowState = {
      projectName,
      requirement,
      currentPhase: "requirement_analysis",
      artifacts: {},
      history: [],
      status: "in_progress",
    };

    const phaseOrder: WorkflowPhase[] = [
      "requirement_analysis",
      "architecture_design",
      "development",
      "code_review",
      "testing",
      "delivery",
    ];

    let currentIndex = 0;
    let maxIterations = 10;
    let iterations = 0;

    while (
      state.currentPhase !== "delivery" &&
      iterations < maxIterations
    ) {
      iterations++;
      const executor = this.executors.get(state.currentPhase);

      if (!executor) {
        throw new Error(`No executor for phase: ${state.currentPhase}`);
      }

      console.log(`\n${"=".repeat(60)}`);
      console.log(`执行阶段: ${state.currentPhase}`);
      console.log(`${"=".repeat(60)}\n`);

      const startTime = new Date();
      const output = await executor.execute({
        workflowState: state,
        previousOutput: state.history[state.history.length - 1],
      });
      const endTime = new Date();

      state.artifacts = { ...state.artifacts, ...output.artifacts };
      state.history.push({
        phase: state.currentPhase,
        agent: this.getAgentForPhase(state.currentPhase),
        startTime,
        endTime,
        status: output.status,
        output: output.message,
        artifacts: output.artifacts,
      });

      if (output.status === "failed") {
        state.status = "failed";
        break;
      }

      if (output.nextPhase) {
        state.currentPhase = output.nextPhase;
      } else {
        currentIndex++;
        if (currentIndex < phaseOrder.length) {
          state.currentPhase = phaseOrder[currentIndex];
        }
      }

      console.log(`阶段结果: ${output.status}`);
      console.log(`消息: ${output.message}`);
      console.log(`下一阶段: ${state.currentPhase}`);
    }

    if (state.currentPhase === "delivery") {
      state.status = "completed";
    }

    return state;
  }

  private getAgentForPhase(phase: WorkflowPhase): string {
    const mapping: Record<WorkflowPhase, string> = {
      requirement_analysis: "product_manager",
      architecture_design: "architect",
      development: "developer",
      code_review: "reviewer",
      testing: "tester",
      delivery: "coordinator",
    };
    return mapping[phase];
  }

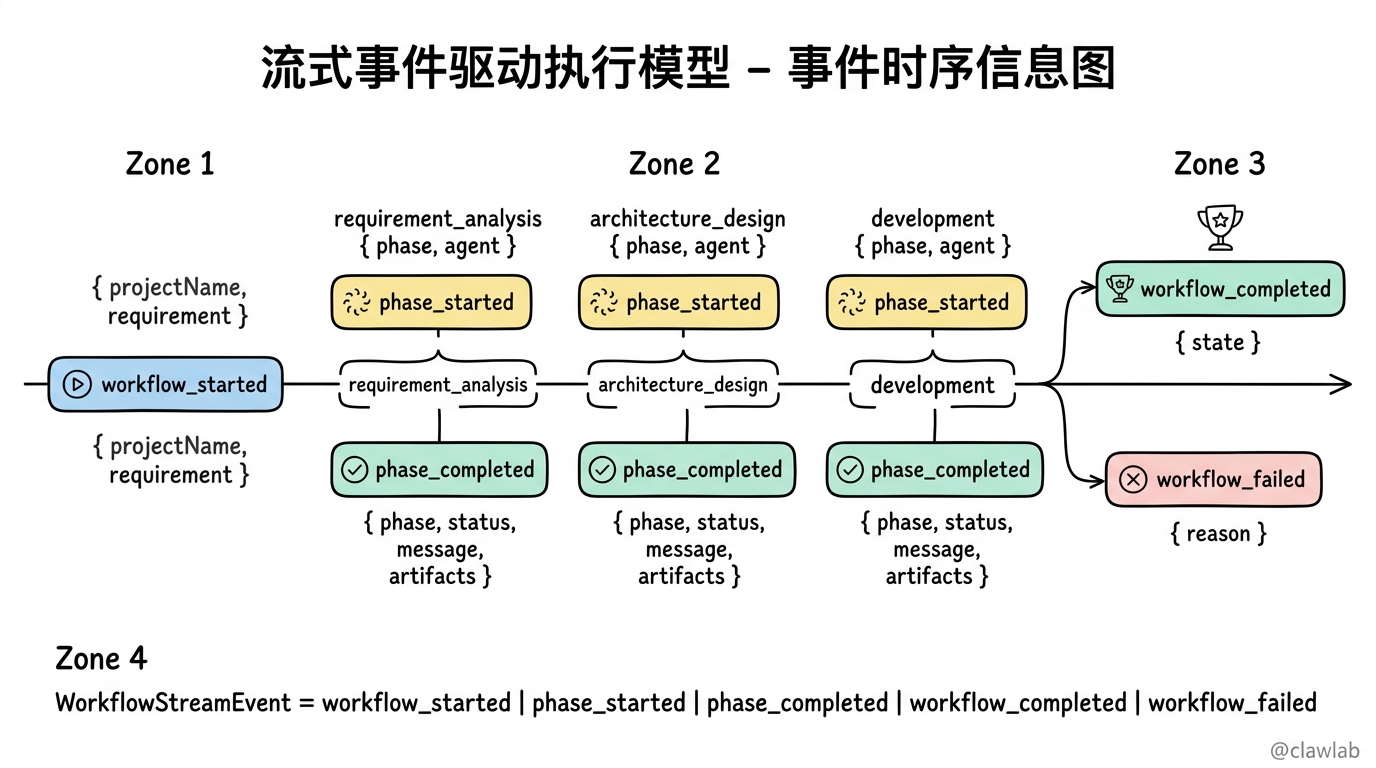

  async *streamRun(
    projectName: string,
    requirement: string
  ): AsyncGenerator<WorkflowStreamEvent> {
    const state: WorkflowState = {
      projectName,
      requirement,
      currentPhase: "requirement_analysis",
      artifacts: {},
      history: [],
      status: "in_progress",
    };

    yield {
      type: "workflow_started",
      data: { projectName, requirement },
    };

    const phaseOrder: WorkflowPhase[] = [
      "requirement_analysis",
      "architecture_design",
      "development",
      "code_review",
      "testing",
      "delivery",
    ];

    while (state.currentPhase !== "delivery") {
      yield {
        type: "phase_started",
        data: {
          phase: state.currentPhase,
          agent: this.getAgentForPhase(state.currentPhase),
        },
      };

      const executor = this.executors.get(state.currentPhase);
      if (!executor) break;

      const output = await executor.execute({ workflowState: state });

      yield {
        type: "phase_completed",
        data: {
          phase: state.currentPhase,
          status: output.status,
          message: output.message,
          artifacts: output.artifacts,
        },
      };

      state.artifacts = { ...state.artifacts, ...output.artifacts };

      if (output.status === "failed") {
        yield { type: "workflow_failed", data: { reason: output.message } };
        return;
      }

      if (output.nextPhase) {
        state.currentPhase = output.nextPhase;
      }
    }

    yield {
      type: "workflow_completed",
      data: { state },
    };
  }
}

interface WorkflowStreamEvent {
  type:
    | "workflow_started"
    | "phase_started"
    | "phase_completed"
    | "workflow_completed"
    | "workflow_failed";
  data: any;
}

流式事件驱动执行模型

完整使用示例

启动工作流

typescript

async function main() {
  const engine = new WorkflowEngine();

  const projectName = "用户管理系统";
  const requirement = `
    构建一个用户管理系统，需要支持：
    1. 用户注册和登录（邮箱/手机号）
    2. 用户信息管理（查看、编辑个人资料）
    3. 密码重置功能
    4. 角色权限管理（管理员、普通用户）
    5. 操作日志记录

    技术要求：
    - 后端使用 Node.js + TypeScript
    - 数据库使用 PostgreSQL
    - 提供 RESTful API
    - 需要完善的错误处理和输入验证
  `;

  console.log("🚀 启动软件开发工作流\n");
  console.log(`项目: ${projectName}`);
  console.log(`需求: ${requirement}\n`);

  const finalState = await engine.run(projectName, requirement);

  console.log("\n" + "=".repeat(60));
  console.log("📊 工作流执行报告");
  console.log("=".repeat(60));
  console.log(`状态: ${finalState.status}`);
  console.log(`阶段历史:`);

  for (const phase of finalState.history) {
    console.log(`  - ${phase.phase}: ${phase.status} (${phase.agent})`);
    console.log(`    ${phase.output}`);
  }
}

main().catch(console.error);

流式执行示例

typescript

async function streamExample() {
  const engine = new WorkflowEngine();

  const projectName = "博客系统";
  const requirement = `
    构建一个简单的博客系统：
    1. 文章的创建、编辑、删除
    2. 文章分类和标签
    3. 评论功能
    4. 用户认证
  `;

  console.log("🚀 启动流式工作流\n");

  for await (const event of engine.streamRun(projectName, requirement)) {
    switch (event.type) {
      case "workflow_started":
        console.log(`📁 项目启动: ${event.data.projectName}`);
        break;

      case "phase_started":
        console.log(`\n⏳ 阶段开始: ${event.data.phase}`);
        console.log(`   负责人: ${event.data.agent}`);
        break;

      case "phase_completed":
        console.log(`✅ 阶段完成: ${event.data.phase}`);
        console.log(`   状态: ${event.data.status}`);
        console.log(`   ${event.data.message}`);
        break;

      case "workflow_completed":
        console.log("\n🎉 工作流完成!");
        break;

      case "workflow_failed":
        console.log(`\n❌ 工作流失败: ${event.data.reason}`);
        break;
    }
  }
}

前端集成

React 组件

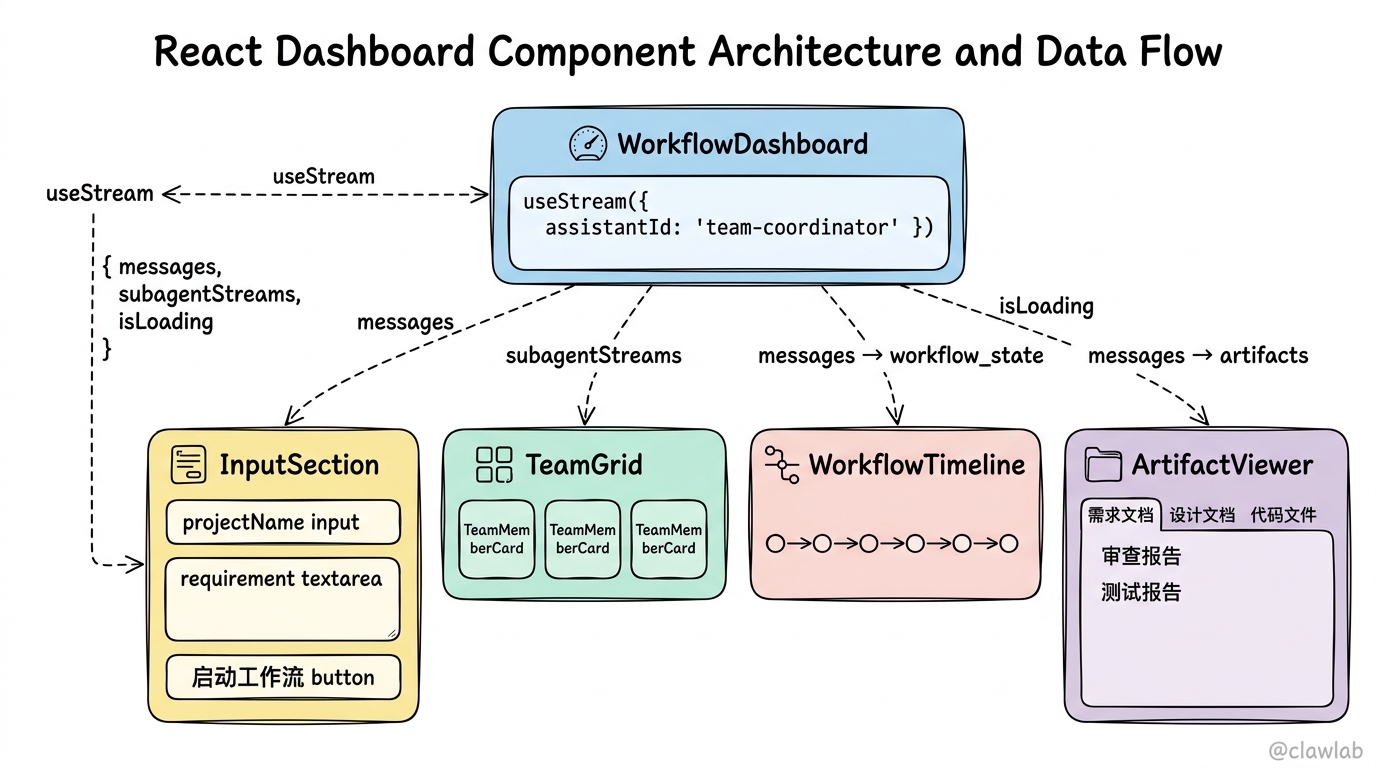

React Dashboard组件架构与数据流

typescript

import React, { useState } from "react";
import { useStream } from "@langchain/langgraph-sdk/react";

interface TeamMemberStatus {
  name: string;
  role: string;
  status: "idle" | "working" | "completed" | "blocked";
  currentTask?: string;
  output?: string;
}

function WorkflowDashboard() {
  const [requirement, setRequirement] = useState("");
  const [projectName, setProjectName] = useState("");

  const { messages, subagentStreams, isLoading, submit } = useStream<{
    messages: any[];
    workflow_state?: WorkflowState;
  }>({
    assistantId: "team-coordinator",
    filterSubagentMessages: true,
  });

  const teamMembers: TeamMemberStatus[] = [
    { name: "product_manager", role: "产品经理", status: "idle" },
    { name: "architect", role: "架构师", status: "idle" },
    { name: "developer", role: "开发者", status: "idle" },
    { name: "reviewer", role: "审查者", status: "idle" },
    { name: "tester", role: "测试员", status: "idle" },
  ].map((member) => {
    const stream = subagentStreams.find((s) => s.name === member.name);
    if (stream) {
      return {
        ...member,
        status: stream.status === "running" ? "working" : "completed",
        currentTask: stream.currentToolCall?.name,
        output: stream.messages[stream.messages.length - 1]?.content,
      };
    }
    return member;
  });

  const handleSubmit = () => {
    submit({
      messages: [
        {
          role: "user",
          content: `项目名称: ${projectName}\n\n需求描述:\n${requirement}`,
        },
      ],
    });
  };

  return (
    <div className="workflow-dashboard">
      <header className="dashboard-header">
        <h1>🏢 AI 软件开发团队</h1>
        <p>多代理协作工作流演示</p>
      </header>

      <div className="input-section">
        <div className="form-group">
          <label>项目名称</label>
          <input
            type="text"
            value={projectName}
            onChange={(e) => setProjectName(e.target.value)}
            placeholder="输入项目名称..."
          />
        </div>
        <div className="form-group">
          <label>需求描述</label>
          <textarea
            value={requirement}
            onChange={(e) => setRequirement(e.target.value)}
            placeholder="描述你的需求..."
            rows={6}
          />
        </div>
        <button
          onClick={handleSubmit}
          disabled={isLoading || !requirement || !projectName}
        >
          {isLoading ? "处理中..." : "🚀 启动工作流"}
        </button>
      </div>

      <div className="team-section">
        <h2>👥 团队状态</h2>
        <div className="team-grid">
          {teamMembers.map((member) => (
            <TeamMemberCard key={member.name} member={member} />
          ))}
        </div>
      </div>

      <div className="workflow-section">
        <h2>📋 工作流进度</h2>
        <WorkflowTimeline
          phases={[
            "requirement_analysis",
            "architecture_design",
            "development",
            "code_review",
            "testing",
            "delivery",
          ]}
          currentPhase={
            messages[messages.length - 1]?.workflow_state?.currentPhase
          }
          history={messages[messages.length - 1]?.workflow_state?.history || []}
        />
      </div>

      <div className="artifacts-section">
        <h2>📦 交付物</h2>
        <ArtifactViewer
          artifacts={
            messages[messages.length - 1]?.workflow_state?.artifacts || {}
          }
        />
      </div>
    </div>
  );
}

function TeamMemberCard({ member }: { member: TeamMemberStatus }) {
  const statusIcons: Record<TeamMemberStatus["status"], string> = {
    idle: "⚪",
    working: "🔵",
    completed: "🟢",
    blocked: "🔴",
  };

  const roleIcons: Record<string, string> = {
    产品经理: "📋",
    架构师: "🏗️",
    开发者: "💻",
    审查者: "🔍",
    测试员: "🧪",
  };

  return (
    <div className={`team-member-card ${member.status}`}>
      <div className="member-header">
        <span className="role-icon">{roleIcons[member.role]}</span>
        <span className="status-icon">{statusIcons[member.status]}</span>
      </div>
      <h3>{member.role}</h3>
      <p className="member-name">{member.name}</p>
      {member.currentTask && (
        <p className="current-task">当前任务: {member.currentTask}</p>
      )}
      {member.output && (
        <div className="member-output">
          <pre>{member.output.substring(0, 200)}...</pre>
        </div>
      )}
    </div>
  );
}

function WorkflowTimeline({
  phases,
  currentPhase,
  history,
}: {
  phases: WorkflowPhase[];
  currentPhase?: WorkflowPhase;
  history: PhaseResult[];
}) {
  const phaseNames: Record<WorkflowPhase, string> = {
    requirement_analysis: "需求分析",
    architecture_design: "架构设计",
    development: "开发实现",
    code_review: "代码审查",
    testing: "测试验证",
    delivery: "交付",
  };

  const getPhaseStatus = (phase: WorkflowPhase) => {
    if (phase === currentPhase) return "current";
    const result = history.find((h) => h.phase === phase);
    if (result) {
      return result.status === "success" ? "completed" : "failed";
    }
    return "pending";
  };

  return (
    <div className="workflow-timeline">
      {phases.map((phase, index) => (
        <React.Fragment key={phase}>
          <div className={`timeline-node ${getPhaseStatus(phase)}`}>
            <div className="node-circle">
              {getPhaseStatus(phase) === "completed"
                ? "✓"
                : getPhaseStatus(phase) === "current"
                  ? "●"
                  : index + 1}
            </div>
            <div className="node-label">{phaseNames[phase]}</div>
          </div>
          {index < phases.length - 1 && (
            <div
              className={`timeline-connector ${
                getPhaseStatus(phases[index + 1]) !== "pending"
                  ? "active"
                  : ""
              }`}
            />
          )}
        </React.Fragment>
      ))}
    </div>
  );
}

function ArtifactViewer({ artifacts }: { artifacts: WorkflowArtifacts }) {
  const [activeTab, setActiveTab] = useState<string>("requirement");

  const tabs = [
    { id: "requirement", label: "需求文档", data: artifacts.requirementDoc },
    { id: "design", label: "设计文档", data: artifacts.designDoc },
    { id: "code", label: "代码文件", data: artifacts.codeFiles },
    { id: "review", label: "审查报告", data: artifacts.reviewReport },
    { id: "test", label: "测试报告", data: artifacts.testReport },
  ];

  return (
    <div className="artifact-viewer">
      <div className="artifact-tabs">
        {tabs.map((tab) => (
          <button
            key={tab.id}
            className={`tab ${activeTab === tab.id ? "active" : ""} ${
              tab.data ? "has-data" : ""
            }`}
            onClick={() => setActiveTab(tab.id)}
          >
            {tab.label}
            {tab.data && <span className="badge">✓</span>}
          </button>
        ))}
      </div>
      <div className="artifact-content">
        {tabs.find((t) => t.id === activeTab)?.data ? (
          <pre>
            {JSON.stringify(
              tabs.find((t) => t.id === activeTab)?.data,
              null,
              2
            )}
          </pre>
        ) : (
          <p className="empty-state">暂无数据</p>
        )}
      </div>
    </div>
  );
}

export default WorkflowDashboard;

样式定义

css

/* workflow-dashboard.css */
.workflow-dashboard {
  max-width: 1400px;
  margin: 0 auto;
  padding: 2rem;
  font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, sans-serif;
}

.dashboard-header {
  text-align: center;
  margin-bottom: 2rem;
}

.dashboard-header h1 {
  font-size: 2.5rem;
  margin-bottom: 0.5rem;
}

.input-section {
  background: #f8f9fa;
  padding: 2rem;
  border-radius: 12px;
  margin-bottom: 2rem;
}

.form-group {
  margin-bottom: 1rem;
}

.form-group label {
  display: block;
  font-weight: 600;
  margin-bottom: 0.5rem;
}

.form-group input,
.form-group textarea {
  width: 100%;
  padding: 0.75rem;
  border: 1px solid #ddd;
  border-radius: 8px;
  font-size: 1rem;
}

.input-section button {
  background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
  color: white;
  border: none;
  padding: 1rem 2rem;
  border-radius: 8px;
  font-size: 1.1rem;
  cursor: pointer;
  width: 100%;
}

.input-section button:disabled {
  opacity: 0.6;
  cursor: not-allowed;
}

.team-section {
  margin-bottom: 2rem;
}

.team-grid {
  display: grid;
  grid-template-columns: repeat(5, 1fr);
  gap: 1rem;
}

.team-member-card {
  background: white;
  border-radius: 12px;
  padding: 1.5rem;
  box-shadow: 0 2px 8px rgba(0, 0, 0, 0.1);
  transition: transform 0.2s, box-shadow 0.2s;
}

.team-member-card.working {
  border: 2px solid #667eea;
  animation: pulse 2s infinite;
}

.team-member-card.completed {
  border: 2px solid #10b981;
}

.team-member-card.blocked {
  border: 2px solid #ef4444;
}

@keyframes pulse {
  0%,
  100% {
    box-shadow: 0 0 0 0 rgba(102, 126, 234, 0.4);
  }
  50% {
    box-shadow: 0 0 0 10px rgba(102, 126, 234, 0);
  }
}

.member-header {
  display: flex;
  justify-content: space-between;
  font-size: 1.5rem;
  margin-bottom: 0.5rem;
}

.workflow-timeline {
  display: flex;
  align-items: center;
  justify-content: space-between;
  padding: 2rem 0;
}

.timeline-node {
  display: flex;
  flex-direction: column;
  align-items: center;
  flex: 0 0 auto;
}

.node-circle {
  width: 40px;
  height: 40px;
  border-radius: 50%;
  background: #e5e7eb;
  display: flex;
  align-items: center;
  justify-content: center;
  font-weight: 600;
  margin-bottom: 0.5rem;
}

.timeline-node.current .node-circle {
  background: #667eea;
  color: white;
  animation: pulse 2s infinite;
}

.timeline-node.completed .node-circle {
  background: #10b981;
  color: white;
}

.timeline-node.failed .node-circle {
  background: #ef4444;
  color: white;
}

.timeline-connector {
  flex: 1;
  height: 3px;
  background: #e5e7eb;
  margin: 0 0.5rem;
}

.timeline-connector.active {
  background: #10b981;
}

.artifact-viewer {
  background: white;
  border-radius: 12px;
  box-shadow: 0 2px 8px rgba(0, 0, 0, 0.1);
  overflow: hidden;
}

.artifact-tabs {
  display: flex;
  border-bottom: 1px solid #e5e7eb;
}

.artifact-tabs .tab {
  flex: 1;
  padding: 1rem;
  border: none;
  background: none;
  cursor: pointer;
  font-size: 0.9rem;
  transition: background 0.2s;
}

.artifact-tabs .tab:hover {
  background: #f8f9fa;
}

.artifact-tabs .tab.active {
  border-bottom: 2px solid #667eea;
  color: #667eea;
}

.artifact-tabs .tab .badge {
  margin-left: 0.5rem;
  color: #10b981;
}

.artifact-content {
  padding: 1.5rem;
  max-height: 400px;
  overflow-y: auto;
}

.artifact-content pre {
  background: #f8f9fa;
  padding: 1rem;
  border-radius: 8px;
  font-size: 0.85rem;
  white-space: pre-wrap;
}

.empty-state {
  text-align: center;
  color: #9ca3af;
  padding: 2rem;
}

高级特性

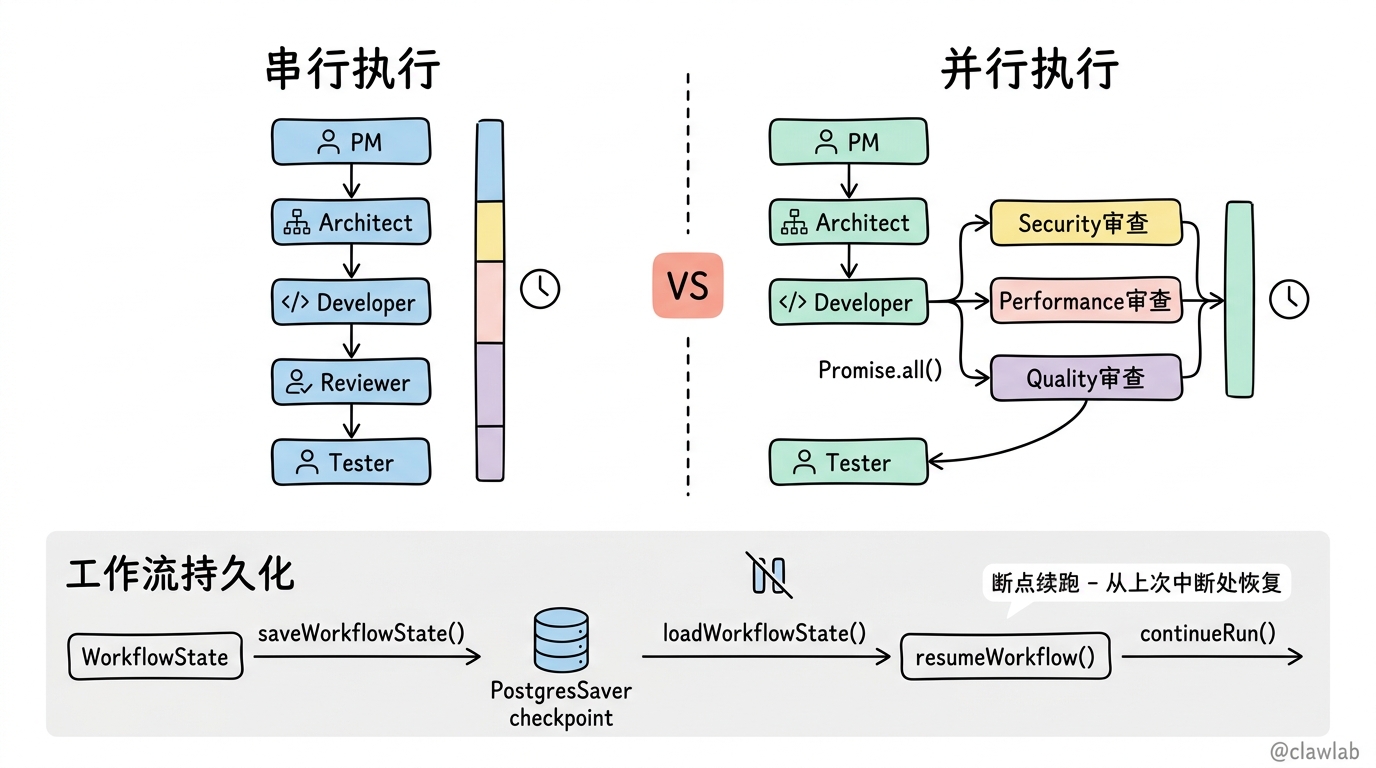

串行vs并行执行与工作流持久化

并行任务执行

typescript

class ParallelWorkflowEngine extends WorkflowEngine {
  async runParallelPhase(
    state: WorkflowState,
    agents: string[],
    task: string
  ): Promise<PhaseOutput[]> {
    const promises = agents.map((agentName) =>
      this.coordinator.invoke({
        messages: [
          {
            role: "user",
            content: `请让 ${agentName} 执行任务: ${task}`,
          },
        ],
      })
    );

    const results = await Promise.all(promises);
    return results.map((result) => ({
      status: "success" as const,
      artifacts: {},
      message: "并行任务完成",
    }));
  }

  async runWithParallelReview(
    projectName: string,
    requirement: string
  ): Promise<WorkflowState> {
    const state = await this.run(projectName, requirement);

    if (state.currentPhase === "code_review") {
      const [securityReview, performanceReview, codeQualityReview] =
        await this.runParallelPhase(
          state,
          ["security_reviewer", "performance_reviewer", "quality_reviewer"],
          "审查代码"
        );

      state.artifacts.reviewReport = {
        status: "approved",
        summary: "多维度审查完成",
        issues: [],
        suggestions: [],
        securityConcerns: [],
      };
    }

    return state;
  }
}

工作流持久化

typescript

import { PostgresSaver } from "@langchain/langgraph/checkpoint/postgres";

class PersistentWorkflowEngine extends WorkflowEngine {
  private checkpointer: PostgresSaver;

  constructor() {
    super();
    this.checkpointer = PostgresSaver.fromConnString(
      process.env.DATABASE_URL!
    );
  }

  async saveWorkflowState(
    threadId: string,
    state: WorkflowState
  ): Promise<void> {
    await this.checkpointer.put(
      { configurable: { thread_id: threadId } },
      {
        values: state,
        next: [],
        tasks: [],
        metadata: {},
      },
      { source: "update", step: 0, writes: {} },
      {}
    );
  }

  async loadWorkflowState(threadId: string): Promise<WorkflowState | null> {
    const checkpoint = await this.checkpointer.get({
      configurable: { thread_id: threadId },
    });
    return checkpoint?.values as WorkflowState | null;
  }

  async resumeWorkflow(threadId: string): Promise<WorkflowState> {
    const state = await this.loadWorkflowState(threadId);
    if (!state) {
      throw new Error(`No workflow found for thread: ${threadId}`);
    }

    console.log(`恢复工作流，当前阶段: ${state.currentPhase}`);
    return this.continueRun(state);
  }

  private async continueRun(state: WorkflowState): Promise<WorkflowState> {
    while (state.currentPhase !== "delivery" && state.status === "in_progress") {
      const executor = this.executors.get(state.currentPhase);
      if (!executor) break;

      const output = await executor.execute({ workflowState: state });
      state.artifacts = { ...state.artifacts, ...output.artifacts };

      if (output.nextPhase) {
        state.currentPhase = output.nextPhase;
      }

      await this.saveWorkflowState(state.projectName, state);
    }

    return state;
  }
}

系列总结

恭喜你完成了 DeepAgents 系列教程的全部 22 篇文章！让我们回顾一下学习历程：

知识图谱

DeepAgents 知识体系
├── 基础入门 (文章 1-3)
│   ├── 核心概念和 API
│   ├── 快速开始
│   └── 自定义配置
├── 后端系统 (文章 4-6)
│   ├── 虚拟文件系统
│   ├── 五种后端类型
│   └── CompositeBackend
├── 高级功能 (文章 7-10)
│   ├── 子代理系统
│   ├── 人机协作
│   ├── 长期记忆
│   └── 技能系统
├── 安全执行 (文章 11-12)
│   ├── 沙箱概览
│   └── 沙箱实战
├── 流式处理 (文章 13-14)
│   ├── 流式输出
│   └── 前端集成
├── CLI 工具 (文章 15-16)
│   ├── CLI 入门
│   └── 高级用法
├── 进阶配置 (文章 17-18)
│   ├── 中间件系统
│   └── 自定义模型
└── 项目实战 (文章 19-22)
    ├── 智能代码助手
    ├── 研究助理系统
    ├── 安全执行平台
    └── 多代理协作 ← 你在这里

DeepAgents 22篇系列教程知识地图

核心能力总结

能力	关键技术	应用场景
任务规划	TodoListMiddleware	复杂任务分解
上下文管理	CompositeBackend	多源数据整合
子代理协作	SubAgent/CompiledSubAgent	专业化分工
长期记忆	StoreBackend	知识积累
安全执行	Sandbox	代码运行
人机协作	interrupt_on	关键决策
流式输出	streamMode/useStream	实时交互

下一步建议

动手实践: 选择一个实战项目，从零开始构建
深入源码: 阅读 DeepAgents 源码，理解内部实现
社区参与: 加入社区，分享经验，贡献代码
持续学习: 关注 DeepAgents 更新，学习新特性

感谢你的学习，期待看到你构建的 AI 代理应用！🚀

实战项目四：多代理协作工作流 ​

项目愿景 ​

架构设计 ​

团队角色定义 ​

工作流状态定义 ​

团队成员实现 ​

1. 产品经理代理 ​

2. 架构师代理 ​

3. 开发者代理 ​

4. 代码审查者代理 ​

5. 测试工程师代理 ​

工作流协调器 ​

主代理定义 ​

工作流执行引擎 ​

阶段执行器 ​

工作流引擎 ​

完整使用示例 ​

启动工作流 ​

流式执行示例 ​

前端集成 ​

React 组件 ​

样式定义 ​

高级特性 ​

并行任务执行 ​

工作流持久化 ​

系列总结 ​

知识图谱 ​

核心能力总结 ​

下一步建议 ​

实战项目四：多代理协作工作流

项目愿景

架构设计

团队角色定义

工作流状态定义

团队成员实现

1. 产品经理代理

2. 架构师代理

3. 开发者代理

4. 代码审查者代理

5. 测试工程师代理

工作流协调器

主代理定义

工作流执行引擎

阶段执行器

工作流引擎

完整使用示例

启动工作流

流式执行示例

前端集成

React 组件

样式定义

高级特性

并行任务执行

工作流持久化

系列总结

知识图谱

核心能力总结

下一步建议
